원래 장소:
중국 충칭
브랜드 이름:
Henghui
모델 번호:
사용자 정의
저희와 연락
| Attribute | Value |
|---|---|
| Shaping Mode | Punching Mold |
| Product Material | Metal |
| Product | Mold |

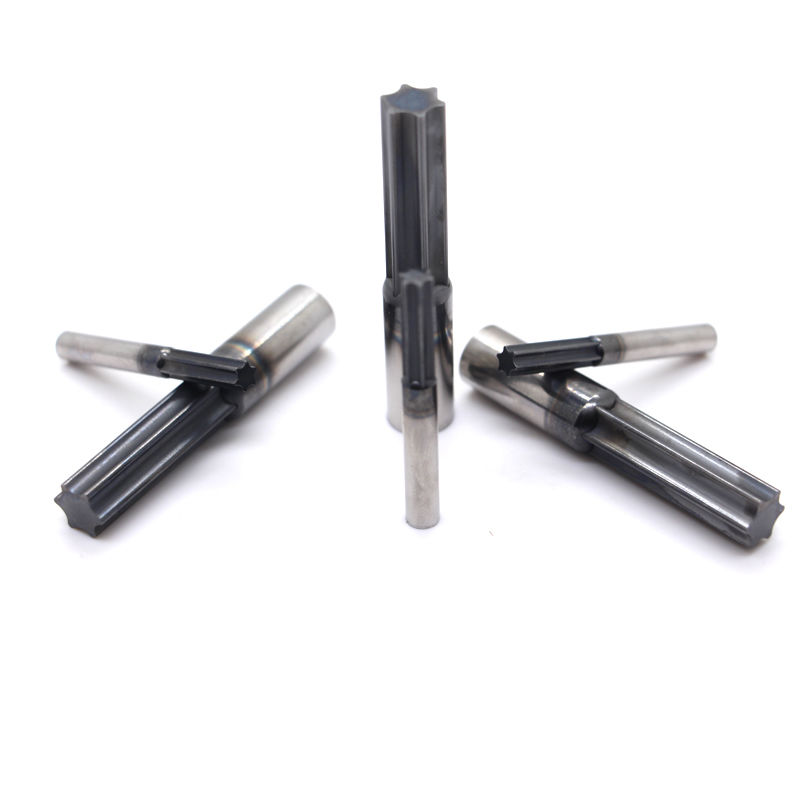

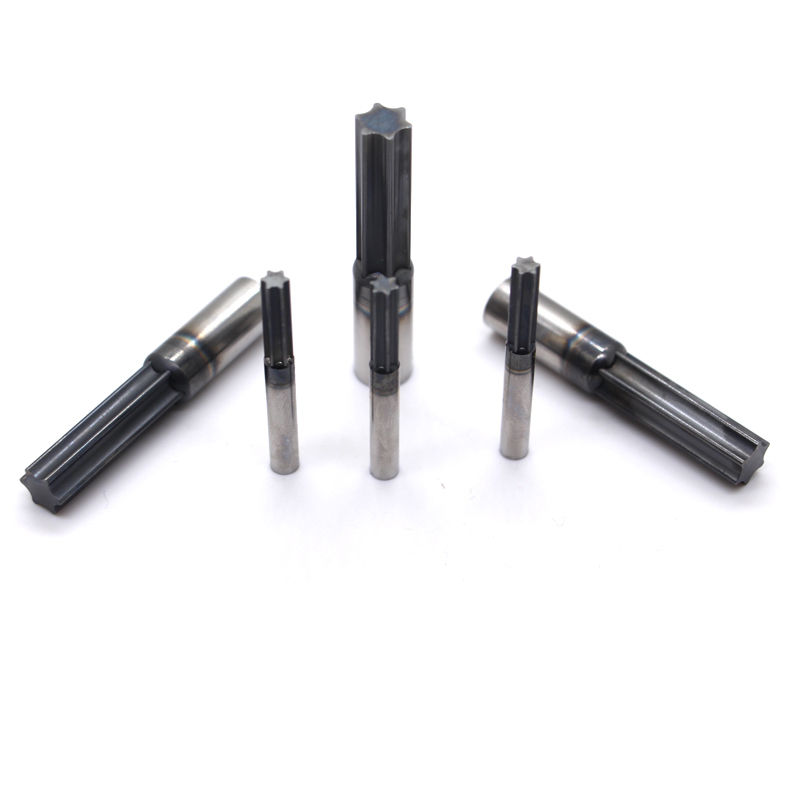

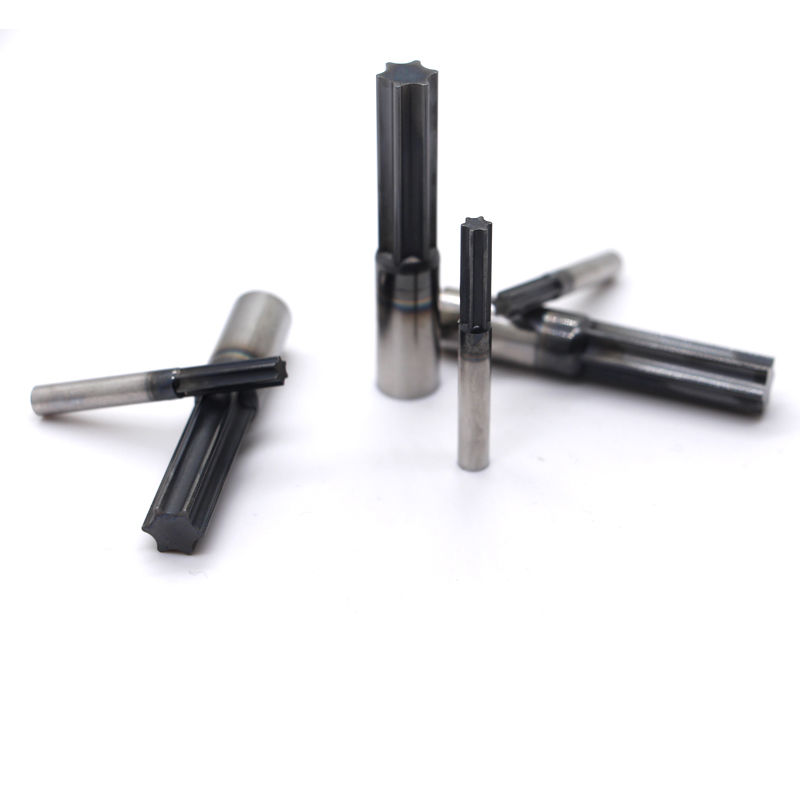

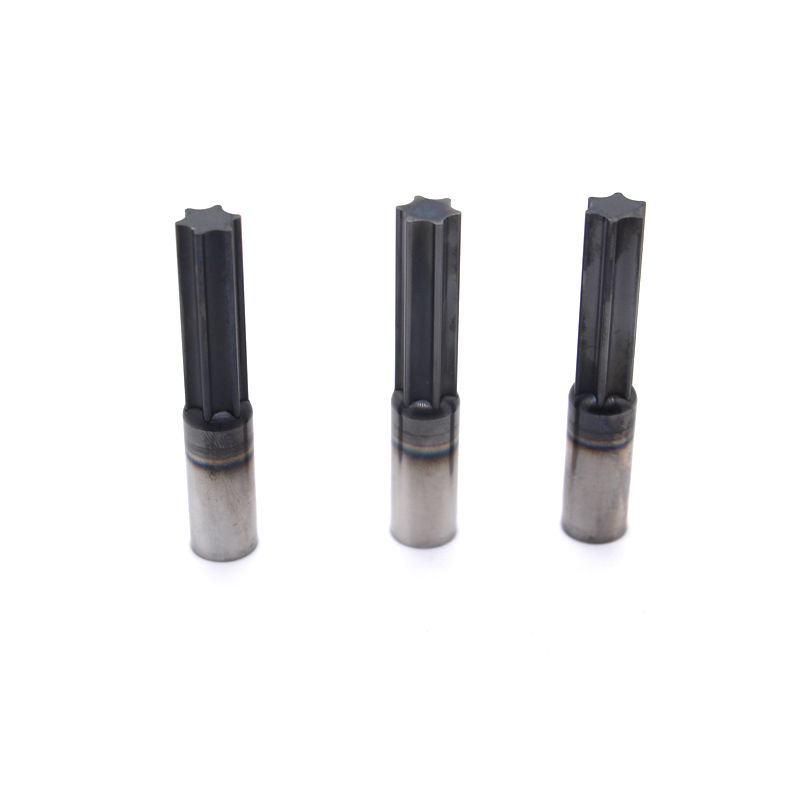

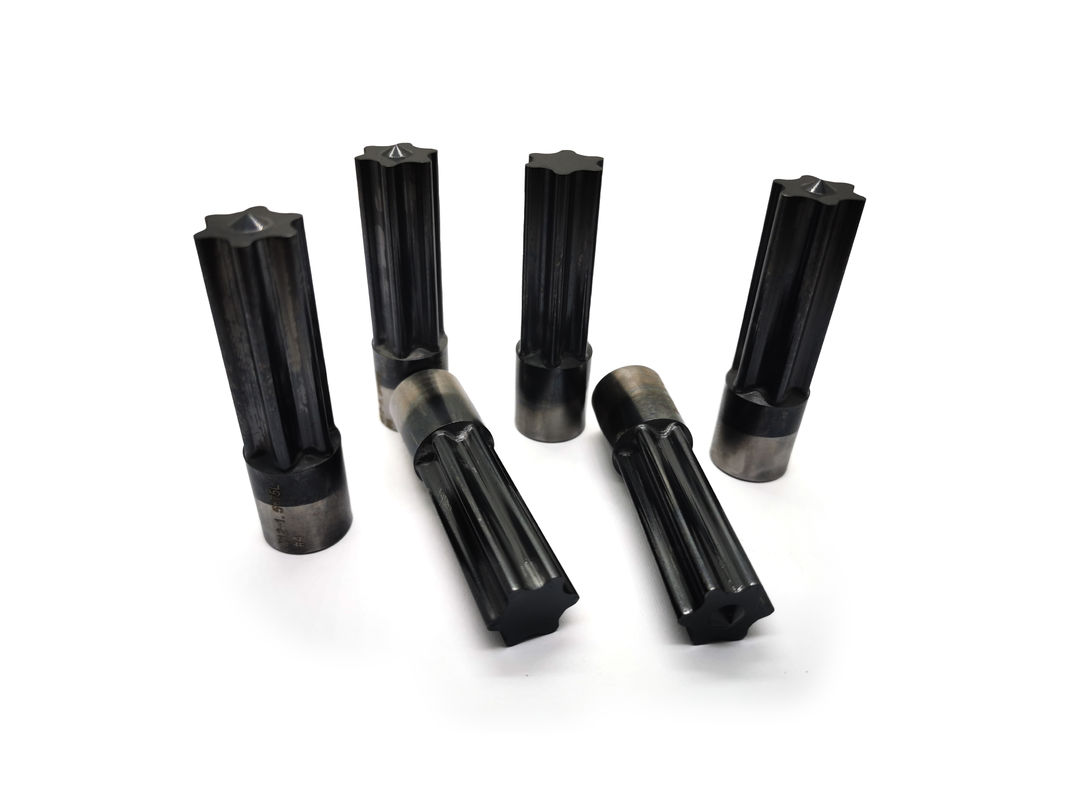

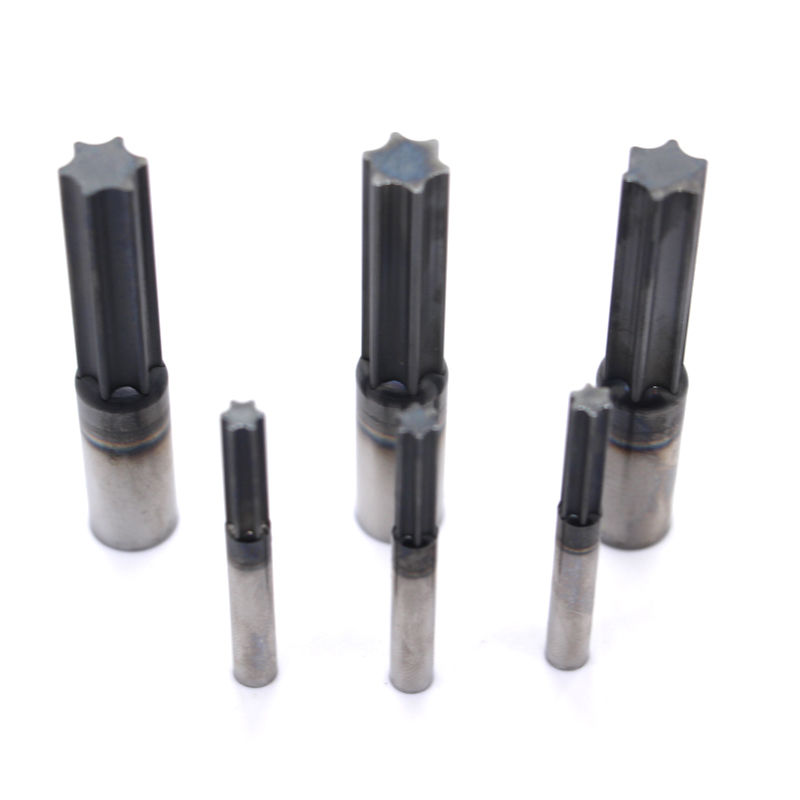

| Product name | Punch Pin |
| Material | Carbide,SKD11,HSS,A2,M2,D2,ASP23,ASP60 |
| Surface Treatment | TiCN,TiN, Aitain,Ticrn,Nitrided |
| Tolerance | 0.003mm-0.01mm |
| Machine type | Punching machine |
| Sample | Available |
| Drawing Format | 2D/(PDF/CAD)3D(IGES/STEP) |
| Usage | Industrial Field |
| MOQ | 10 pcs |
| Delivery Time | 3-15 working days |
| H9(M2) Chemical Composition | ||||||||
|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Cr | Mo | V | W |
| 0.85% | 0.33% | 0.34% | 0.027% | 0.005% | 4.12% | 4.73% | 1.78% | 5.74% |
| Cu | Ni | |||||||
| 0.12% | 0.24% | |||||||
| M42(SKH59) Chemical Composition | ||||||||
|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Cr | Mo | V | W |
| 1.06% | 0.3% | 0.31% | 0.018% | 0.002% | 3.74% | 9.29% | 1.1% | 1.34% |
| Cu | Ni | Co | ||||||
| 0.07% | 0.29% | 7.97% | ||||||
| Feature | Specification |
|---|---|
| Product Name: | Pin Punch |
| Material: | M2/M42/M35/Carbide |
| Profile tolerance: | +/-0.006MM~ +/-0.008MM |
| Surface treatment: | Polishing, coating Treatment, Nitriding treatment, measuring, ETC |
| Hardness | HRA60-68 |
| Measuring instruments: | VMS, profile projector, pressure gauge, hardness tester, magnifying glass, etc |
| Usage | For making bolts or nuts |
| Design: | Standard or un-standard parts, according to customer's requirement |
| Processing machinery: | Wire EDM, CNC milling and turning, laser cutting, drilling, grinding, bending, stamping, welding, etc |
| Drawing software: | AUTOCAD, pro-engineer, UG, moldflow, etc |
| Application: | Machinery equipment, Heavy industries parts & tools, medicine, chemical, etc |
| Quality control: | 100% inspection before shipping |
| Customization: | OEM ODM service |
직접적으로 당신의 조사를 우리에게 보내세요
