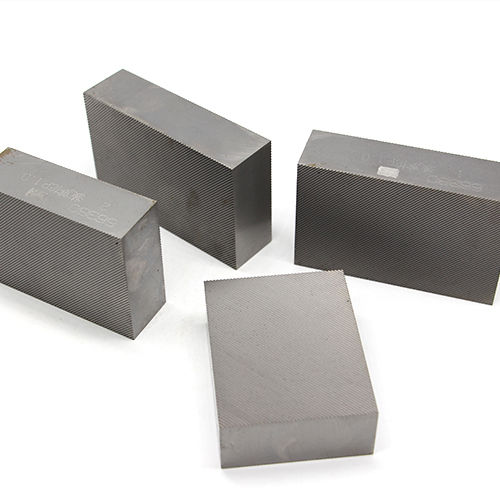

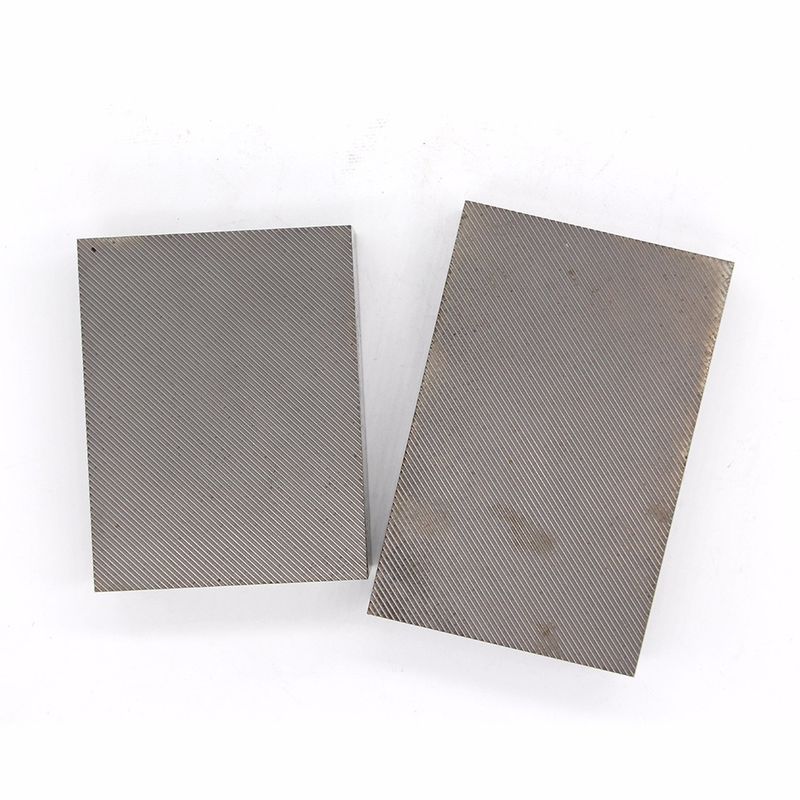

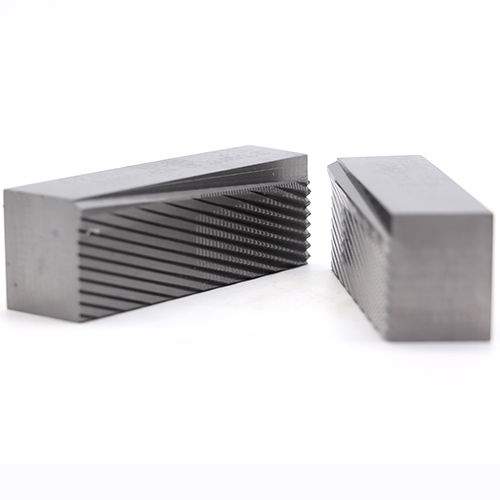

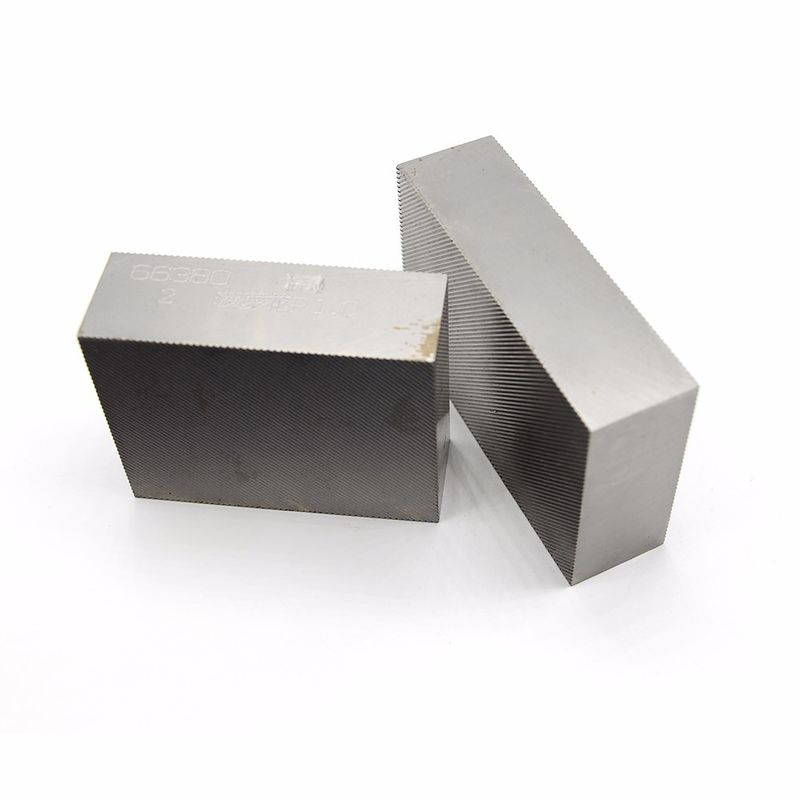

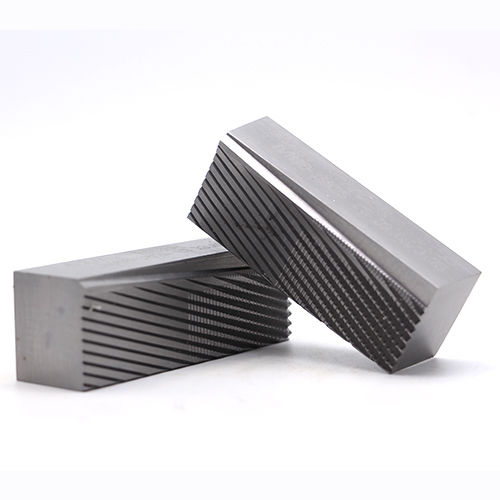

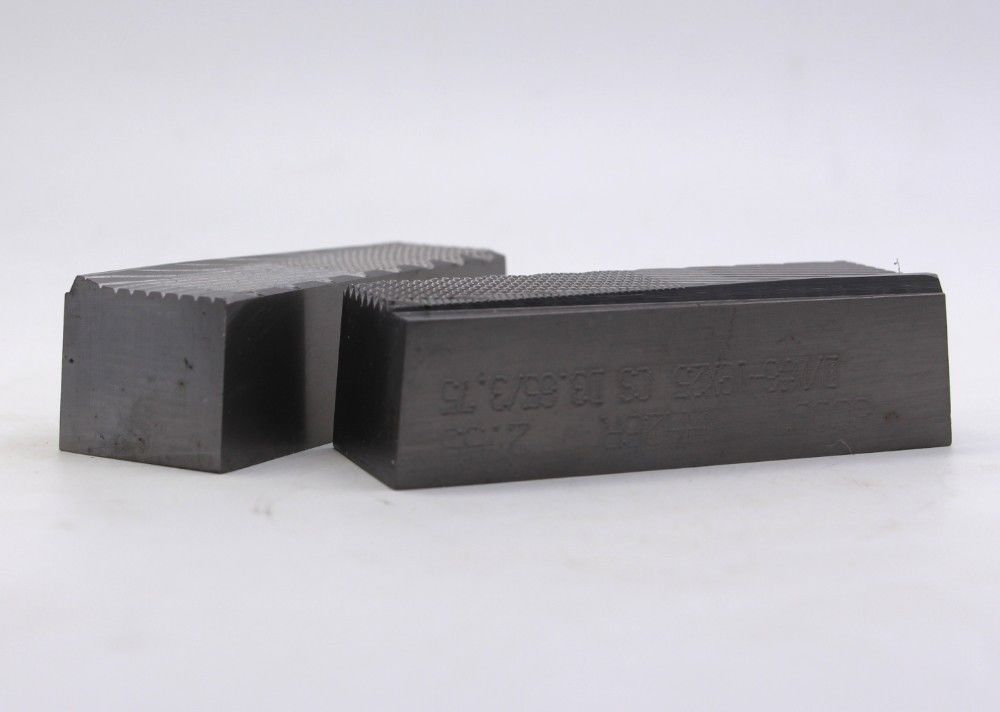

Name: DC53 Thread Rolling Dies for Self Tapping Screw Making Molds
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: 사용자 정의
Price: 250.00 USD
Availability: InStock

집 > 상품 > 카바이드 펀치와 죽음 >

DC53 Thread Rolling Dies for Self Tapping Screw Making Molds

DC53 thread rolling dies

self tapping screw molds

carbide thread rolling dies

원래 장소:

중국 충칭

브랜드 이름:

Henghui

모델 번호:

사용자 정의

저희와 연락

인용 을 요청 하십시오

DC53 Thread Rolling Dies for Self Tapping Screw Making Molds

제품 세부 정보

모양 모드:

다이 캐스팅

제품 자료:

DC53

재료 유형:

HSS

크기 사용자 정의:

고객의 그림

다이 유형:

a/b

재료 구성:

DC53+N 또는 H9+N

화학 성분:

C : 0.95%, SI : 0.89%, MN : 0.3%, P : 0.018%, S : 0.006%, CR : 7.7%, MO : 1.92%, V : 0.75%, W : 0.91

기계 유형:

다양한 크기 (예 : 0, 3/16, 1/4, 5/16, 3/8, 1/2, 3/4)

길이 범위:

15-230mm

높이 범위:

20-150mm

두께 범위:

25-265mm

상대 편차:

≤0.005mm

동심도:

≤0.01mm

경도 테스팅:

록크웰 경도계

측정 정확도:

3차원 이미지 측정기

지불 및 배송 조건

최소 주문 수량

High Precision Carbide Die for Screw Extrusion Mould

최상의 가격을 얻으세요

Custom Hex Trimming Die Carbide CVD Coating Industrial Mold

최상의 가격을 얻으세요

Custom Tungsten Carbide Die Mold for Nuts M12-M20 Forging Mould

최상의 가격을 얻으세요

DC53 Thread Rolling Dies for Self Tapping Screw Making Molds

최상의 가격을 얻으세요

저희와 연락

+8613983025528

hou@citool.com

86-023-60338218-60338218

지금 연락하세요

제품 설명

Henghui Self Tapping Screw Making Molds Thread Rolling Dies Plate DC53+N

Product Specifications

Attribute	Value
Shaping Mode	Die Casting
Product Material	DC53
Product	SCREW, Thread Rolling Dies
Product name	Screw Making Molds Thread Rolling Dies Plate HSS
Material	HSS
Size	Customer's Drawing
Certificate	ISO9001:2015
Type	A/B
Service	Customized OEM
Usage	For making screws
Packing	Carton

Product Description

Material Specifications

Our main case materials are DC53+N or H9+N

Size

Length*Height*thickness (for example, 90/105x25x25mm)

DC53 Chemical Composition

Element	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.95	0.89	0.3	0.018	0.006	7.7	1.92	0.75	0.91

Machine Type Specifications

MACHINE TYPE	S	H	L1(FIXED)	L2(MOVING)
0	19	25	51	64
3/16	25	25,38,55	75	90
1/4	25	25,40,55,65,80	100	115
5/16	25	25,40,55,65,80,105	127	140
3/8	25	25,40,55,65,80,105	150	165
1/2	35	55,80,105,125,150	190	215
3/4	38	55,80,105,125,150	230	265
003	15	20	45	55
004	20	25	65	80
4R	20	25	60	70
6R	25	25,30,40,55	90	105
8R	25	25,30,40,55,65	108	127
250	25	25,40,55	110	125
DR125	20.8	25,40	73.3	86.2 (5。）
DR200	20.8	25,40,53	92.3	105.2 (53)
DR250	23.8	25,40,54	112	131.2 (Í)

Product Features

Henghui specializes in manufacturing high-quality screw thread rolling dies using premium raw materials. Our engineers professionally design each die according to customer specifications, ensuring:

High accuracy and dimensional stability
Exceptional strength and durability
Extended service life compared to competitors
Compatibility with most threading machines
Custom solutions for specialized applications

We offer comprehensive technical support and can advise on the optimal thread rolling die for your specific requirements. Contact us with your technical inquiries for a response within 24 hours.

Manufacturing Capabilities

Chongqing Henghui Precision Mold Co., Ltd. operates with advanced CNC equipment and strict quality control:

CNC lathes and machining centers
Precision grinding and EDM machines
Comprehensive testing equipment including hardness testers and 3D measuring instruments
ISO9001:2015 certified quality management
Dimensional accuracy within 0.005mm
Concentricity control within 0.01mm
