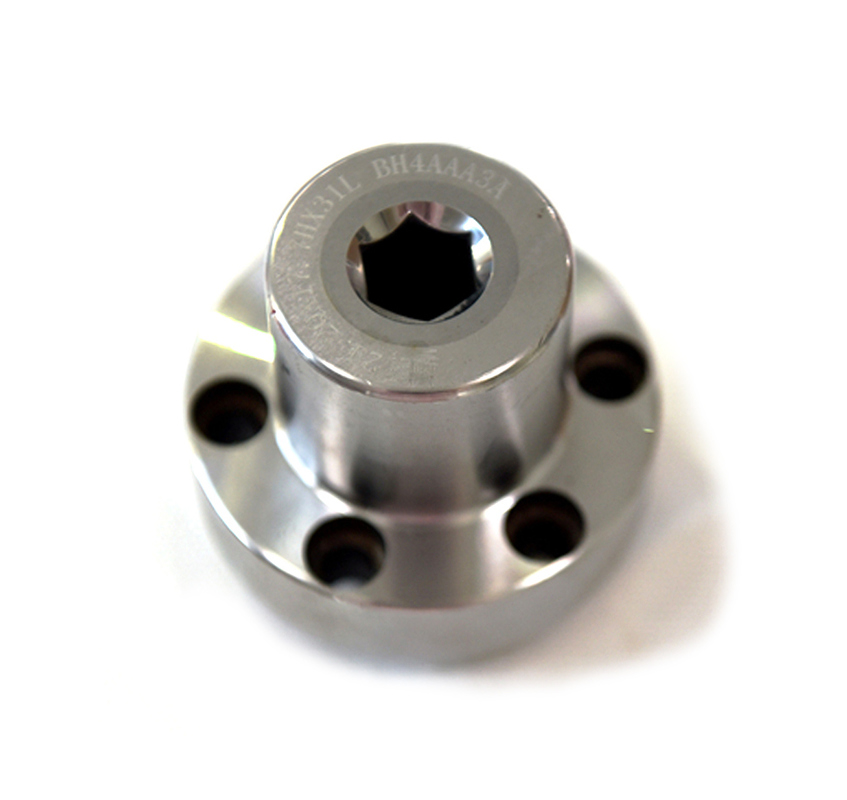

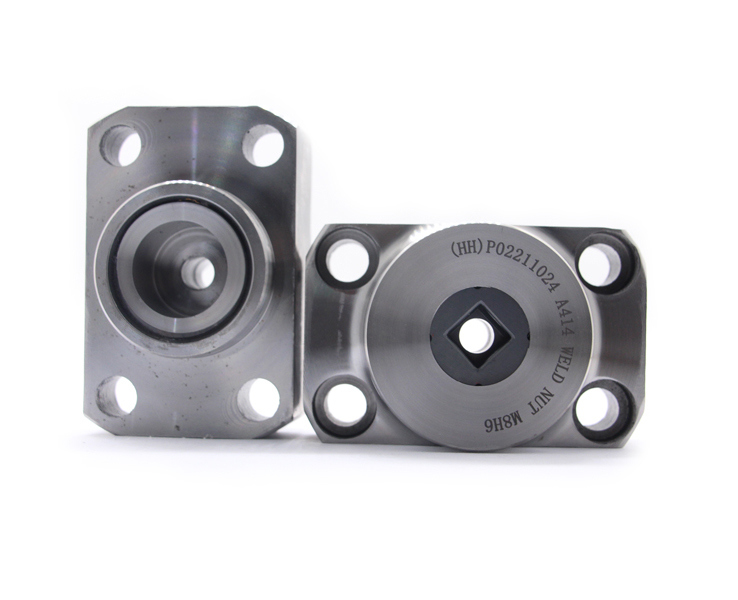

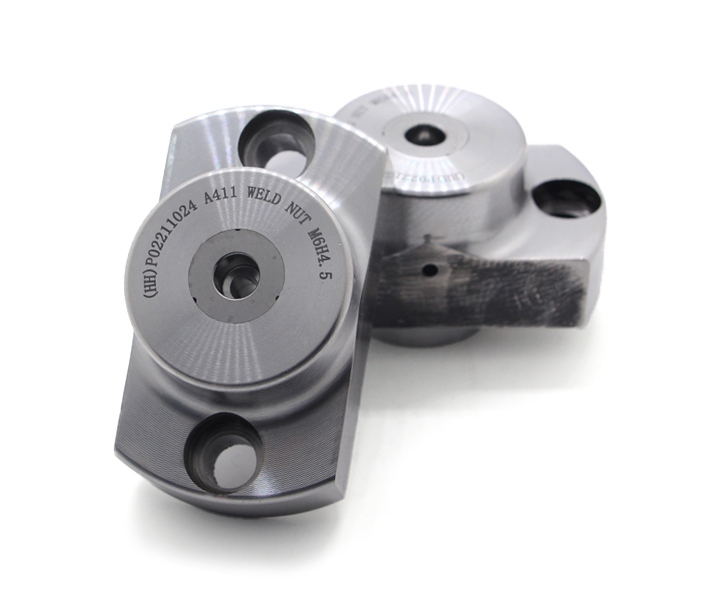

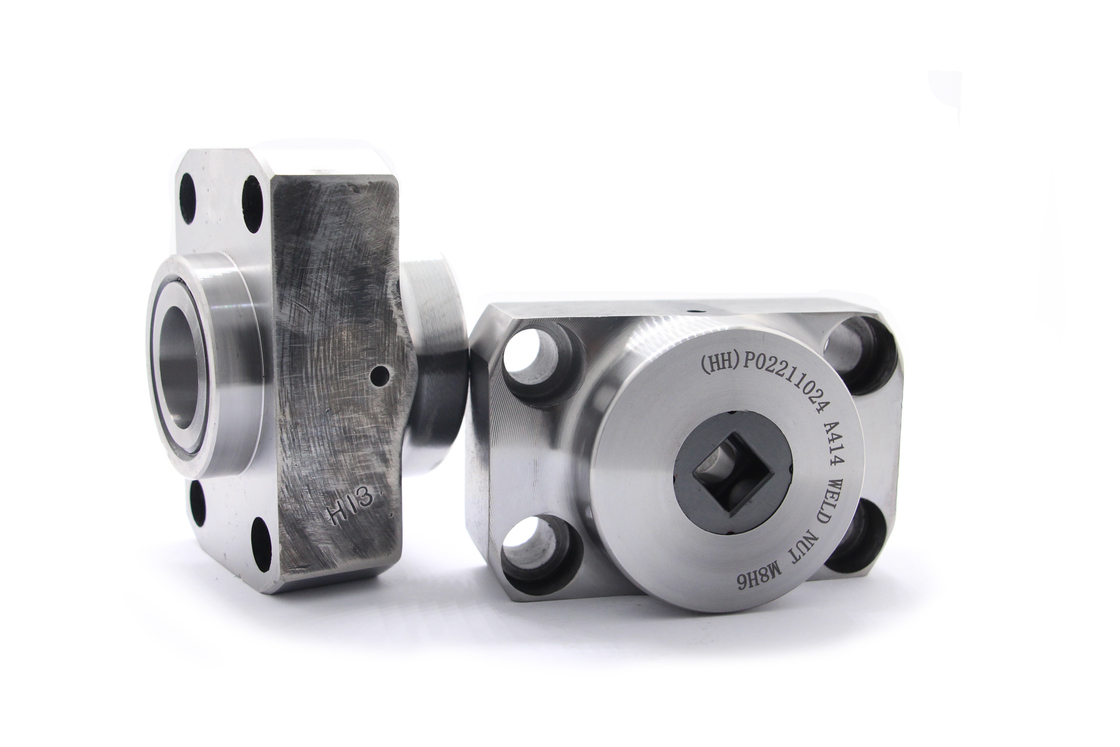

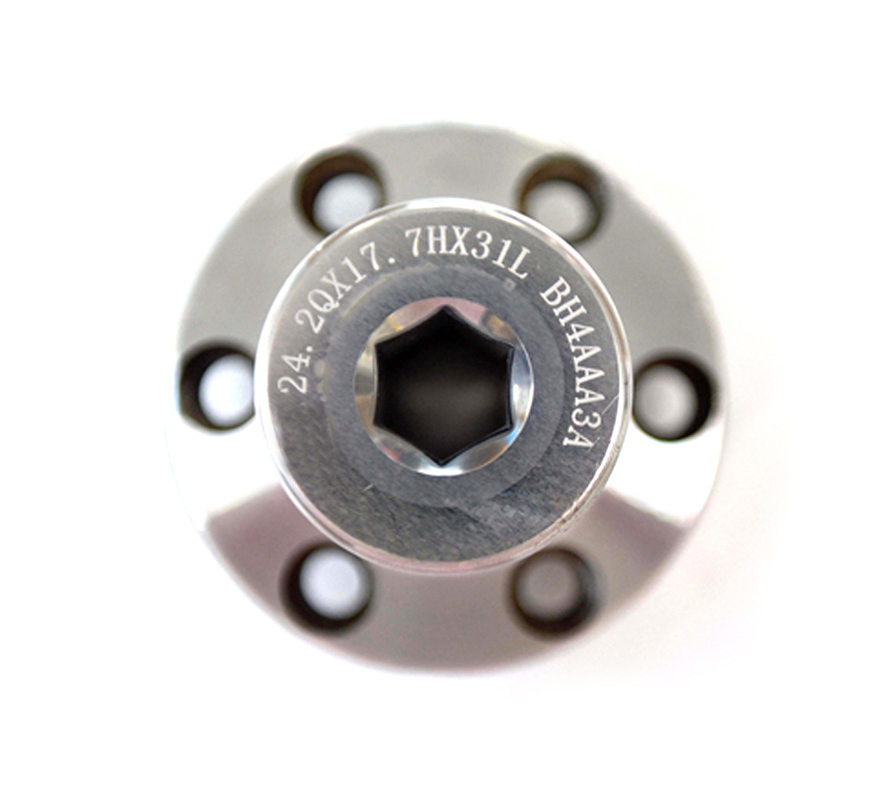

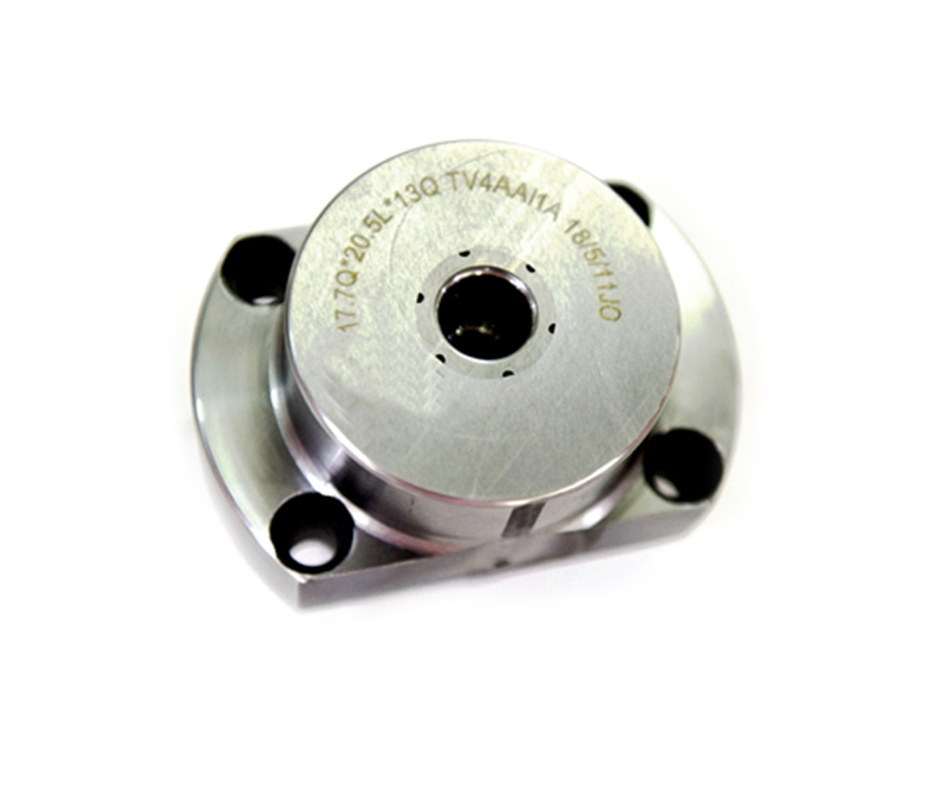

Name: 2025 Wholesale Tungsten Carbide Die for Making Screws Bolts with VA80 ST7 ST6 KG5 KG6 Materials and +/-0.01 Tolerance
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: 사용자 정의
Price: 100.00 USD
Availability: InStock

집 > 상품 > 텅스텐 카바이드 다이 >

2025 Wholesale Tungsten Carbide Die for Making Screws Bolts with VA80 ST7 ST6 KG5 KG6 Materials and +/-0.01 Tolerance

VA80 ST7 ST6 KG5 KG6 Tungsten Carbide Die

+/-0.01 Tolerance Tungsten Carbide Die

Tungsten Carbide Material Cold Heading Die

원래 장소:

중국 충칭

브랜드 이름:

Henghui, Henghui

모델 번호:

사용자 정의

저희와 연락

인용 을 요청 하십시오

2025 Wholesale Tungsten Carbide Die for Making Screws Bolts with VA80 ST7 ST6 KG5 KG6 Materials and +/-0.01 Tolerance

제품 세부 정보

모양 모드:

곰팡이를 만들기

제품 자료:

강철, 강철과 카바이드

탄화물 물질:

VA80, ST7, ST6, KG5, KG6

용인:

+/-0.01

케이스 자료:

H13 (SKD61) HRC46-48

표면 처리:

TIN / TIALN

코발트 성분:

6.50% -24%

곡물 크기:

2 ~ 3 μm -6 ~ 9 μm

밀도:

13.22-14.90 g/cm²

경도:

82.5-90.5 HRA

Trs:

240-340 kgf/mm²

충격 강도:

0.28-0.90 kgf/m -cm²

화학 성분:

C, SI, MN, P, S, CR, MO, V, W, CU, NI

동심도:

0.01mm

표준 편차:

0.005mm

지불 및 배송 조건

최소 주문 수량

산업용 나사 펀치 도구 경화 된 강철 빠른 변화 펀치 고 정밀 CNC 가공

최상의 가격을 얻으세요

Customized Cold Heading Nut Mold with Alloy Material and Square Shape for Industrial Applications

최상의 가격을 얻으세요

Precision Thread Rolling Die with +/-0.01mm Tolerance High Accuracy and Long Life for Screw Making

최상의 가격을 얻으세요

YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making

최상의 가격을 얻으세요

저희와 연락

+8613983025528

hou@citool.com

86-023-60338218-60338218

지금 연락하세요

제품 설명

2025 Wholesale Cold Heading Nut Forging Tungsten Carbide Die for Making Screws Bolts

Insert Material Options

We provide different carbide materials tailored for specific applications:

Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Medium-Grained
KG2	6.50%	2~3 μm	14.90 g/cm²	90.5 HRA	320 Kgf/mm²	0.28 Kgf/m-cm²	Drawing die
KG3	9%	2~3 μm	14.61 g/cm²	89.3 HRA	340 Kgf/mm²	0.52 Kgf/m-cm²	Extrusion die
KG5	12%	2~3 μm	14.31 g/cm²	88.3 HRA	340 Kgf/mm²	0.58 Kgf/m-cm²	Extrusion die
KG6	14%	2~3 μm	14.12 g/cm²	87.3 HRA	320 Kgf/mm²	0.65 Kgf/m-cm²	Extrusion die
Coarse-Grained
ST6	15%	3~6 μm	13.80 g/cm²	86.0 HRA	270 Kgf/mm²	0.78 Kgf/m-cm²	Stainless steel
ST7	20%	2~6 μm	13.40 g/cm²	85.3 HRA	270 Kgf/mm²	0.80 Kgf/m-cm²	Stainless steel
EA65	18%	2~6 μm	13.73 g/cm²	85.0 HRA	300 Kgf/mm²	0.80 Kgf/m-cm²	Carbon steel screw/cutting die
VA80	20%	3~6 μm	13.58 g/cm²	84.0 HRA	280 Kgf/mm²	0.85 Kgf/m-cm²	Impact resistance
VA90	22%	6~9 μm	13.39 g/cm²	82.5 HRA	240 Kgf/mm²	0.90 Kgf/m-cm²	Impact resistance
EA90	24%	2~6 μm	13.22 g/cm²	82.8 HRA	270 Kgf/mm²	0.90 Kgf/m-cm²	Impact resistance

Case Material

Primary case material: H13(SKD61) HRC46-48

SKD61(H13) Chemical Composition
C	Si	Mn	P	S	Cr	Mo	V	W
0.39%	1.15%	0.44%	0.021%	0.007%	5.12%	1.3%	0.94%	0.06%
Cu		Ni
0.05%		0.06%

Surface Treatment

Available options: TiN / TiAlN

About Chongqing Henghui Precision Mold Co., Ltd.

We specialize in manufacturing high-quality precision molds for cold heading and hot upsetting industries. Our facility includes CNC lathes, machining centers, grinding machines, EDM machines, and comprehensive testing equipment. We maintain strict quality control with precision standards of 0.005mm deviation and 0.01mm concentricity, operating under ISO9001:2015 certification.

Our products are exported globally to Southeast Asia, Europe, and the United States. We adhere to the principles of "Customer first, quality first, technology first, dedicated service."

Packaging & Delivery

Packaging: Carton Box; Export Standard Package, or customized per client requirements.
Delivery Time: 12-45 days depending on order quantity.

Frequently Asked Questions

Q1: How can I get a quotation from your company?

A1: Contact us with your drawings, material specifications, quantity requirements, and surface treatment preferences for a prompt quote.

Q2: What is your lead time?

A2: Lead time depends on product customization and destination country.

Q3: What is your minimum order quantity (MOQ)?

A3: MOQ varies by product. Contact our sales team for details.

Q4: What payment methods do you accept?

A4: We accept T/T, L/C, and PayPal.

Q5: What is your after-sales service like?

A5: We provide technical support, product repair, and replacement services.

Q6: How can I get your product catalog and quotation?

A6: Contact our sales team through our official channels for immediate assistance.
